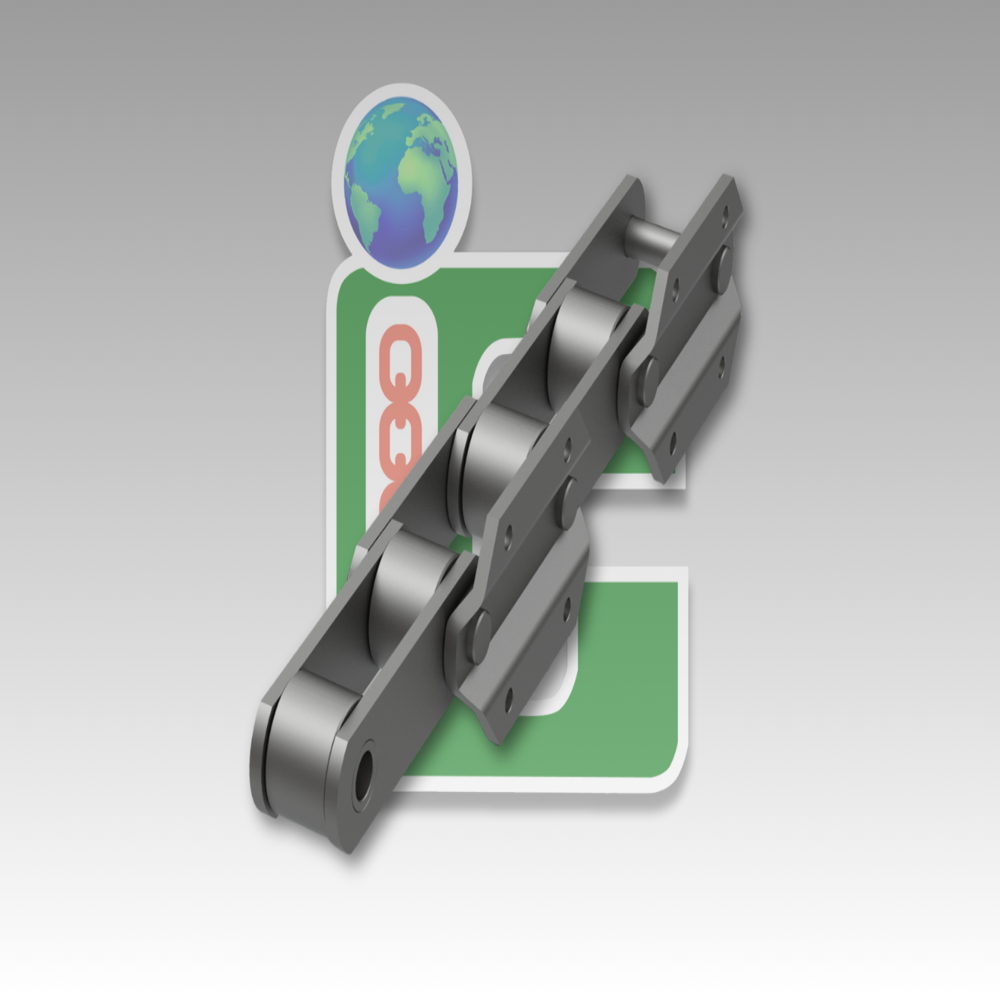

Double Strand Bucket Elevator Chain

Name: Double Strand Bucket Elevator Chain
Brand: Indo Chains (Raipur) Pvt Ltd.
Price: 5500.0 INR
Availability: InStock

Price 5500.0 INR/ Unit

Get a Price/Quote

MOQ : 50 Units

Double Strand Bucket Elevator Chain Specification

Material
Metal

Metal Type
Alloy

Hole Shape
Customized

Double Strand Bucket Elevator Chain Trade Information

Minimum Order Quantity
50 Units

Delivery Time
6 Week

About Double Strand Bucket Elevator Chain

Our Double-strand bucket elevator chains are engineered for the efficient vertical conveyance of bulk materials in demanding industrial applications. These heavy-duty chains combine superior fatigue resistance, exceptional wear durability, and reliable performance in continuous operation environments. Designed in compliance with international standards, our bucket elevator chains are trusted across cement, chemical, food, pharmaceutical, and mining industries.

Technical Specifications

1. Material of Construction (MOC)

Chain Components:

Component	Standard MOC	Alternative Options
Chain Links	High-tensile, ductile tempered steel	Grain-refined construction steel
Pins	Alloy steel (hardened)	Surface-hardened special alloys
Bushings	Alloy steel (hardened)	Chrome-plated alloy steel
Rollers	High-carbon steel (induction hardened)	Alloy steel with wear-resistant coating

Bucket Materials:

Item	Standard MOC	Optional Materials
Buckets	Mild Steel (M.S.) with reinforced scooping edges	Stainless Steel 304 / 316, Plastic (HDPE)
Bucket Plates	M.S. with extended side plates	Stainless Steel for corrosive environments
Fasteners	Mild Steel bolts and nuts	Stainless Steel for hygienic applications

2. Performance Characteristics

Capacity & Velocity

Specification	Details
Conveying Capacity	0.25 TPH to 150 TPH (depending on bucket size and speed)
Maximum Height	Up to 50 meters (customizable for specific applications)
Chain Velocity	Up to 1.4 m/s for double-strand systems with centrifugal discharge
Operating Speed	Standard: 4080 m/min; High-speed: Up to 100 m/min (with modifications)

Fatigue & Wear Resistance

High-strength pin and bushing materials: Provide superior wear resistance and extended service life

Heat treatment process: Pins and bushes undergo rigorous heat treatment with optimal surface hardness (5562 HRC typical) and significant hardening depth

Precision interference fits: Between pins/bushes and chain links ensure minimal slack and optimal load distribution

Fatigue strength rating: Exceeds standard requirements for shock and impact loads

3. Applications

Primary Industry Sectors

Cement Industry:

Vertical conveying of clinker, limestone, and cement powder
Handling abrasive and high-temperature materials
Capacity: Up to 100+ TPH

Chemical & Fertilizer Industry:

Conveying granules, powders, and chemical compounds
Acidic and alkaline material handling
Dust-tight enclosed systems available

Mining & Aggregates

Conveying ore, coal, limestone, and sand
Handling coarse and abrasive bulk materials
Shock-resistant construction

Power Generation

Conveying coal to furnaces
Biomass and waste handling
High-capacity vertical discharge elevators

4. Design Features & Advantages:

Dual-Strand Configuration:

Two independent chains distribute load evenly
Enhanced stability and reduced wear compared to single-strand designs
Provides redundancy for critical applications

Centrifugal Discharge Capability:

Automatic discharge when buckets reach the top sprocket
Smooth, controlled material release
Reduces spillage and material degradation

Continuous Discharge Option:

Buckets remain attached throughout the operation
The extended bottom plates guide the material to the next bucket
Ideal for fragile or sticky materials

Superior Wear Resistance:

Hardened pins and bushings reduce elongation
Extended maintenance intervals compared to standard chains
Cost-effective over machine's lifetime

Easy Connection/Disconnection:

Designed for quick maintenance in confined spaces
Minimal downtime for inspections and repairs

Low Noise Operation:

Precision-engineered interfaces reduce vibration
Enclosed elevator housing minimizes dust and noise emissions

Frequently Asked Questions (FAQ)

Q: What is the typical lifespan of a double strand bucket elevator chain?
A: With proper maintenance and lubrication, our chains typically last 35 years under normal operating conditions. With optimized care, lifespan can extend to 7+ years. Harsh environments may reduce life to 23 years.

Q: Are stainless steel options available?
A: Yes. We offer fully stainless steel chains for food, pharmaceutical, and corrosive material applications. These command a premium price but provide superior corrosion resistance.

Q: What buckets styles are available?
A: We offer centrifugal discharge and continuous discharge buckets in multiple sizes. Centrifugal buckets are ideal for general bulk materials; continuous discharge suits sticky or fragile materials.

Q: Can IndoChains provide complete bucket elevator solutions?
A: Yes. In addition to chains, we supply buckets, fasteners, sprockets, and engineering consultation for complete elevator system design and assembly.

Q: What is your minimum order quantity?
A: MOQ varies: 100 links for standard configurations, 250 links for customized specifications. Contact sales for bulk or equipment manufacturer discounts.

Q: Do you offer installation and commissioning services?
A: Yes. We provide on-site installation, commissioning, and operator training at reasonable service charges.

Q: What maintenance is required?
A: Regular lubrication (every 5001000 hours), monthly bucket inspection, quarterly wear measurement, and annual comprehensive inspection ensure optimal performance and longevity.
