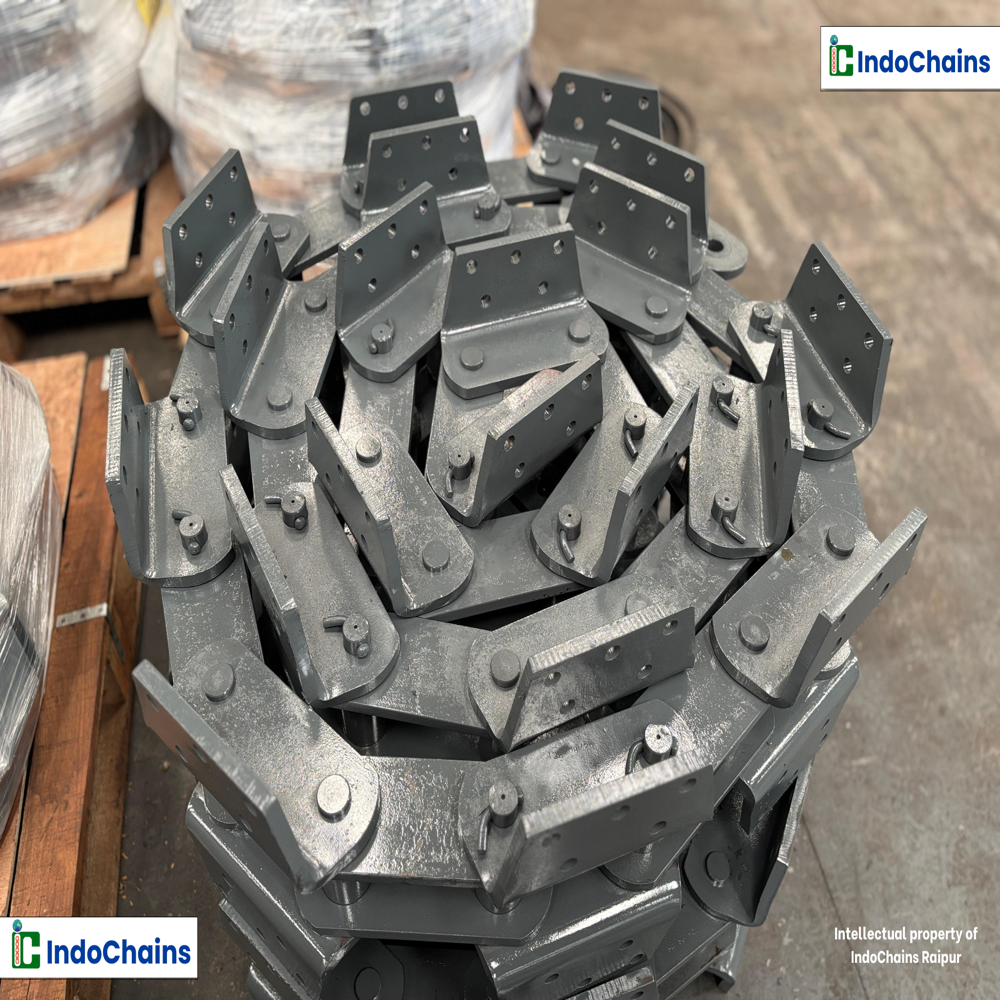

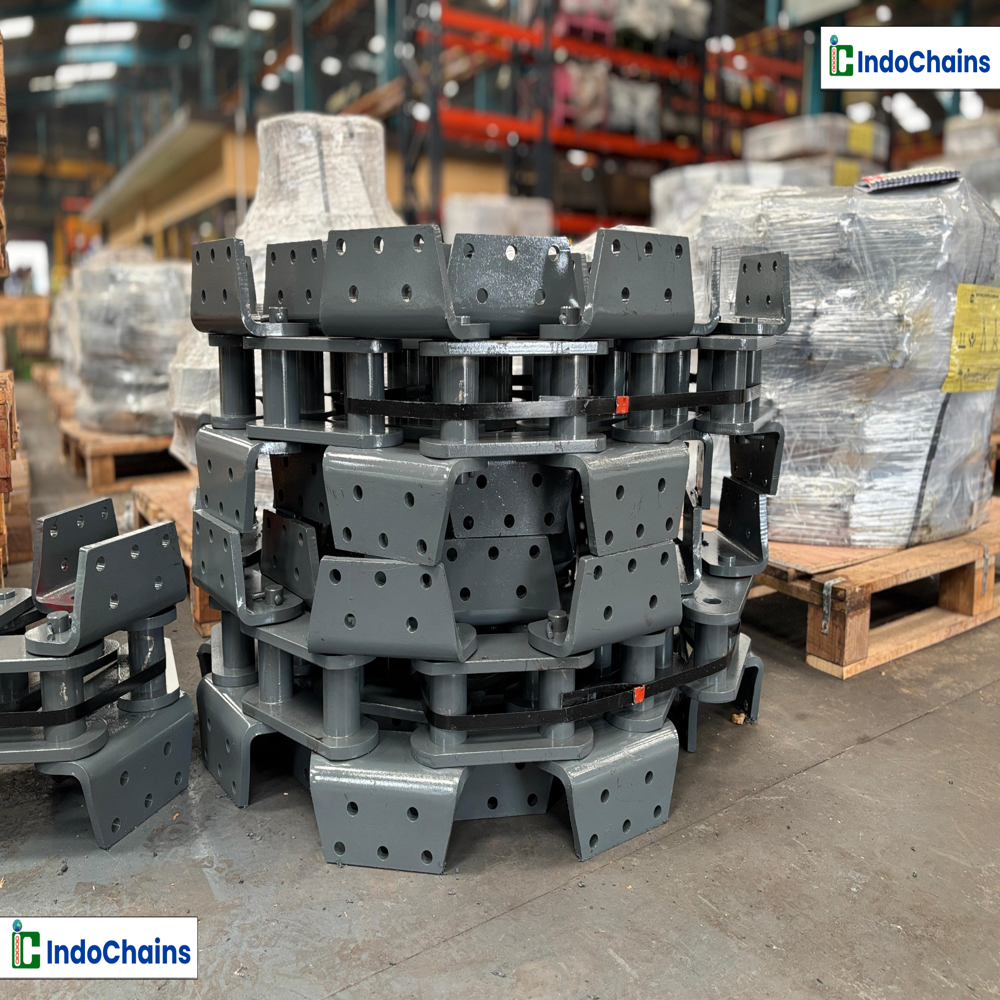

Bucket Elevator Chain

Bucket Elevator Chain

5000.00 - 50000.00 INR/Meter

Product Details:

X

Price And Quantity

  • 5000.00 - 50000.00 INR/Meter
  • 100 Meter

Trade Information

  • 10000 Meter Per Day
  • 4 Months

Product Description

Being a client-centric organization, we are engaged in manufacturing, exporting and supplying superior grade Bucket Elevator Chain. These chains are made using alloys of steel and carbon in short pitch grade. Quality approved at various levels of manufacturing, our offered chains are made available to our clients at most competitive price and that too within predefined time frame. Manufactured with straight side plates, Bucket Elevator Chain is known for following features:

  • High strength
  • Impact resistance
  • Extrusion resistance
  • High surface hardness

Technical Details:

Standard Or Nonstandard: Nonstandard
Tensile Strength: 236kn-1500kn
Model Number: IC – 26
Type: Conveyor Chain
Place Of Origin: Chhattisgarh, India
Product Name: Bucket Elevator Chain
Certificate: Iso 9001:2000
Material: Steel
Brand Name: INDO CHAINS
Pitch: 75mm-150mm



Grade

ICR 60 RC and ICR 60 RC Special

Material

Special Fine grained High Strength Steel 20 Mn2 as per IS 5517 and Sae 8620 Alloy Steel

Precess of Manufacture

Flash Butt Welded

Heat Treatment

Gas Carburised ,Double Quenched with Care Refining and Tempered.

Case Depth

0.1 d + 0.01d up to 28 mm dia +0.01d/- 0.02d from 30 mm dia

Skin Hardness

RC 60-64 (HV 30 Min-720Kp /mm2

Mechanical Properties

Proof Strength : 120N/mm2 Min.

Breaking Strength: 240N/mm2

Delivery Condition

Chains are supplied in Matched pairs




National Size

Pitch

Outside Width

Recommended No. of Links

Length of chain

Weight of each chain

Grade ICR 60 RC

Minimum Breaking Load

Pitch of Appropriate chain bow (Plain Sprocket)

D

p

w

n

L

kgs

kN

kN

P

16

56

54

9

504

2.7

50

100

63

18

63

60

9

567

3.8

63

126

70

20

70

67

7

490

4.2

80

160

80

23

80

77

7

560

6.2

100

200

91

26

91

87

5

455

6.4

126

252

105

30

105

101

5

525

10.2

170

340

126

36

126

122

5

630

17.2

250

500

147

42

147

142

5

735

26.5

340

680

147


CHAIN WITH PITCH 2.8d AS PER DIN-766


D

p

w

n

L

kgs

kN

kN

P

16

45

54

9

405

2.3

50

100

63

18

50

60

9

450

3.3

63

126

70

20

56

67

7

392

3.6

80

160

80

23

64

77

7

448

5.5

100

200

91

26

73

87

7

511

7.7

126

252

105

30

84

101

7

588

12.0

170

340

126

36

101

122

7

707

21.0

250

500

147

42

118

142

7

826

33.0

340

680

147
